12V power connector: Yes
1st M. 2 highest PCI Express generation: 5.0
1st M. 2 largest key size: 25110
2nd M. 2 highest PCI Express generation: 4.0
2nd M. 2 largest key size: 22110
3rd M. 2 highest PCI Express generation: 4.0
3rd M. 2 largest key size: 22110
ACPI version: 5.0
Antenna included: Yes
ATX Power connector (24-pin): Yes
Audio Chip: Realtek ALC897
Audio output channels: 7.1 channels
Batteries included: Yes
Battery technology: Lithium-Manganese Dioxide (LiMnO2)
Battery type: CR2032
Battery weight: 3 g
BIOS memory size: 256 Mbit
BIOS type: UEFI AMI
Bluetooth: Nu
Bluetooth version: 5.3
Bundled software: Norton® Internet Security (OEM version)
LAN bandwidth management software
Canale audio: 7.1
Chipset audio integrat: Realtek
Clear CMOS button: Yes
Clear CMOS jumper: Yes
Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Component for: PC
Country of origin: China
CPU fan connector: Yes
Depth: 244 mm
Desktop Management Interface (DMI) version: 2.7
DirectX version: 12.0
DisplayPorts quantity: 1
DVI-D ports quantity: 0
ECC сompatibility: Non-ECC
EPS power connector (8-pin): Yes
Ethernet interface type: 2.5 Gigabit Ethernet
Ethernet LAN: Yes
Ethernet LAN (RJ-45) ports: 1
Format: ATX
Front panel audio connector: Yes
Front panel connector: Yes
Gaming: Da
HDCP: Yes
HDMI: Da
HDMI ports quantity: 1
Headphone outputs: 1
Height: 35 mm
Lithium weight per battery: 0.07 g
Maximum internal memory: 256 GB
Maximum internal memory per slot: 64 GB
Maximum resolution: 4096 x 2160 pixels
Memorie maxima: 256 GB
Memory channels: Dual-channel
Memory slots type: DIMM
Microphone in: Yes
Model Chipset: B850
Motherboard chipset: AMD B850
Motherboard chipset family: AMD
Motherboard form factor: ATX
Numar sloturi memorie: 4
Number of battery cells: 1
Number of chassis fan connectors: 3
Number of CPU fan connectors: 2
Number of EPS power connectors (8-pin): 1
Number of HDDs supported: 4
Number of M. 2 (M) slots: 3
Number of memory slots: 4
Number of RGB LED pin headers: 4
Number of SATA III connectors: 4
Number of storage drives supported: 7
Number of water pump connectors: 2
Onboard-CPU: No
Package depth: 270 mm
Package height: 80 mm
Package weight: 2.38 kg
Package width: 335 mm
Parallel processing technology support: Not supported
PC health monitoring: Fan, Temperature, Voltage, Water cooling
PCI: 0
PCI Express x16 (Gen 3. x) slots: 2
PCI Express x16 (Gen 5. x) slots: 1
Peripheral (Molex) power connectors (4-pin): 1
Power source type: ATX
Processor manufacturer: AMD
Processor socket: Socket AM5
Product colour: Brown
Products per shipping (inner) case: 1 pc(s)
RAID levels: 0, 1, 10
RAID support: Yes
RGB LED pin header: Yes
RJ-45 LAN: 1
Screws included: Yes
Serial port headers: 1
Serial-or-Paralel: No/No
Sloturi M. 2: 3
Soclu Procesor: Socket AM5
Supported memory clock speed (max): 8200 MHz
Supported memory clock speeds: 4400,4800, 5200,8200 MHz
Supported memory types: DDR5-SDRAM
Supported processor sockets: Socket AM5
Supported storage drive interfaces: M. 2, SATA III
Supported storage drive types: HDD & SSD
System Management BIOS (SMBIOS) version: 2.7
Thunderbolt: Nu
Tip Memorie: DDR5
Tip slot interfata grafica: N/A
Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
TPM connector: Yes
Unbuffered memory: Yes
USB 2.0 connectors: 2
USB 2.0 ports quantity: 3
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 0
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
USB 3.2 Gen 2x2 connectors: 1
USB Type C: Da
VGA (D-Sub) ports quantity: 0
Video-Connection: HDMI/DP
Warranty period: 3 year(s)
Weight: 2.1 kg
Wi-Fi: Yes
Width: 305 mm
WiFi-AP antenna jack: 2
Windows operating systems supported: Windows 10 x64, Windows 11 x64
Wireless: Da
WLAN controller model: Realtek RTL8111H


Denumiri similare la Placa de baza GIGABYTE B850 GAMING X WIFI6E: B 850 GAMING X WIFI 6 E, B850GAMINGXWIFI6E, B 850 GAMING X WIFI6E, B850 GAMING X WIFI6 E

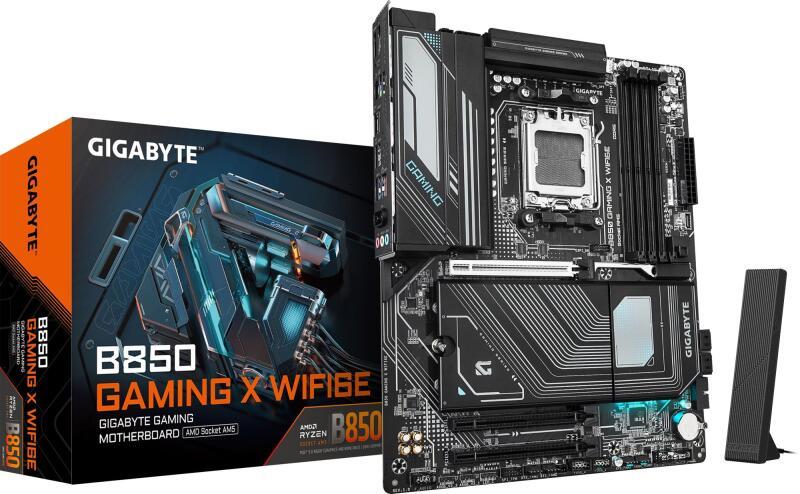

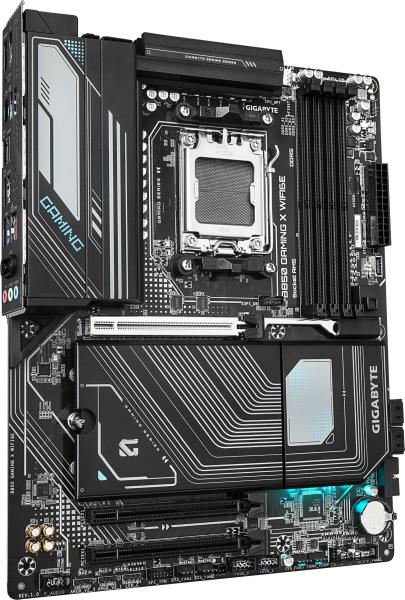

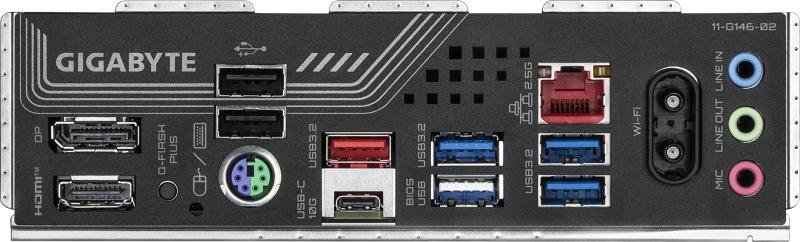

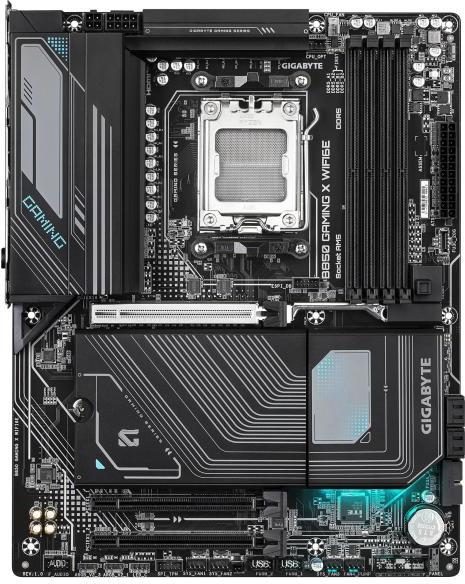

Galerie
