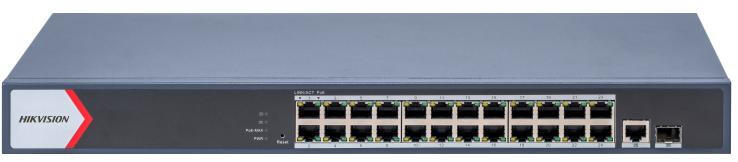

Switch 24 porturi PoE Hikvision DS-3E1526P-E Power over Ethernet – PoE Reprezinta modalitatea de alimentare a camerelor sau a altor echipamente IP, prin intermediul cablului de retea. Implementarea retelei se rezuma la un singur cablu, prin care este transmis semnalul de date cat si alimentarea echipamentului. Prin intermediul PoE, instalarea sistemelor de supraveghere devine mult mai simpla, mai sigura si mai putin costisitoare. General Shell Metal material Net Weight 3.1 kg (6.83 lb) Gross Weight 3.3 kg (7.27 lb) Dimensions (W × H × D) 440.0 mm × 220.8 mm × 44.0 mm (17.32'' × 8.69'' × 1.73'') Operating Temperature 0 °C to 45 °C (32 °F to 113 °F) Storage Temperature -40 °C to 85 °C (-40 °F to 185 °F) Operating Humidity 5% to 95% (no condensation) Relative Humidity 5% to 95% (no condensation) Power Supply 100~240 V AC, 50/60 Hz, Max. 6.3 A Installation Mode Rack (equipped with mounting ears) Max. Power Consumption 400 W Power Consumption in Idle 30 W Surge Protection 6 KV Network Parameters Ports 24 × Gigabit PoE port, 1 × Gigabit RJ45 port, 1 × Gigabit fiber optical port MAC Address Table 8 K Switching Capacity 56 Gbps Packet Forwarding Rate 41.66 Mpps Internal Cache 4.1 Mbits PoE Power Supply PoE Standard IEEE 802.3af, IEEE 802.3at PoE Power Pin 8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-) PoE Port PoE: Ports 1 to 24 Max. Port Power 30 W PoE Power Budget 370 W Software Function Long Range Ports 1 to 24: up to 300 m. Long range performance may vary depend on camera model or cable condition. PoE Watchdog Ports 1 to 24: auto detect and restart the cameras that do not respond. Link Aggregation Link aggregation is used to aggregate multiple physical ports to form a logical port for load balancing, bandwidth expansion, and port protection. Support static link aggregation. Support 8 aggregation group(s). Loop Prevention Loop prevention is used to prevent the switching network from forming loops, which will seriously affect network communication. Disabled by default. Support 802.1D STP. Suppport 802.1w RSTP. VLAN VLAN is used for network scale planning and network health improvement. Support 802.1Q. Configurable VLAN ID from 1-4094. Support Trunk, Access port mode. Support Max. 32 VLAN. Port Isolation Ports 1 to 24: port isolation mode to improve network security. Ports in an isolation group cannot communicate with each other, but they can communicate with ports outside the isolation group. System Maintenance Support device management via web. Support DHCP Client. Enabled by default for dynamic assignment of management IP addresses. Support Super IP, which is a fixed IP address (10.180. 190.200) for direct access. Support remote management via Hik-Partner Pro. Support cable detection. Abnormal open circuits and short circuits as well as network cable length can be detected. Support 802.1ab LLDP for peer device discovery. Support port mirroring for fault locating. HPP Support one-click activation and remote management via Hik-Partner Pro. Functions supported: 1. Display the port rate. 2. Display the port bandwidth utilization rate. 3. Display the PoE power usage. 4. Display topology information. 5. Display the alarm status. 6. Restart ports and devices. 7. Enable port long-rage mode. 8. Remotely upgrade the device. Approval EMC CE-EMC (EN 55032: 2015, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011 +A1: 2014, EN 55035: 2017); Safety UL (UL 60950-1); CB (IEC 60950-1:2005, AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition); CE-LVD (EN 60950-1: 2006 + A11: 2009 +A1: 2010+A12: 2011+A2: 2013, EN 62368-1: 2014+A11: 2017) Chemistry CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No. 1907/2006)


Denumiri similare la Switch de retea Hikvision DS-3E1526P-EIV2: DS 3 E 1526 P EIV 2, DS3E1526PEIV2, DS 3E1526P EIV2, DS 3E1526P-EIV2, DS-3E15 26P-EIV 2
