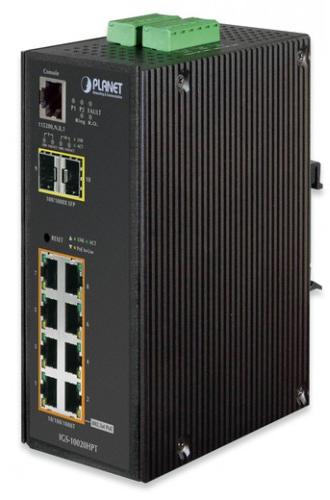

Switch industrial cu Management, 8 porturi Gigabit cu PoE si 2 sloturi SFP  Environmentally Hardened Design
The Industrial 8-Port Gigabit 802.3at PoE Switch, IGS-10020HPT is equipped with rugged IP30 metal case for stable operation in heavy Industrial demanding environments. With IP30 industrial case protection, the IGS-10020HPT provides a high level of immunity against electromagnetic interference and heavy electrical surges which are usually found on plant floors or in curb side traffic control cabinets. Being able to operate under wide temperature range from -40 to 75 Degree C, the IGS-10020HPT can be placed in almost any difficult environment. The IGS-10020HPT also allows either DIN rail or wall mounting for efficient use of cabinet space. Redundant Ring, Fast Recovery for Surveillance System
The IGS-10020HPT supports redundant ring technology and features strong rapid self-recovery capability to prevent interruptions and external intrusions. It incorporates advanced  Redundant Ring  technology, Spanning Tree Protocol (802.1w RSTP), and redundant power supply system into customer’s industrial automation network to enhance system reliability and uptime in harsh factory environments. The IGS-10020HPT also protects customer’s industrial network connectivity with switching recovery capability that is used for implementing fault tolerant ring and mesh network architectures. If the Industrial network was interrupted accidentally, the fault recovery times could be  less than 50ms  to quickly bring the network back to normal operation. High Power PoE for Security and Public Service Applications
To fulfill the demand of High Power PoE for network applications with Gigabit speed transmission under wide temperature, the IGS-10020HPT provides 8 10/100/1000Mbps port featuring both  IEEE 802.3af and High Power IEEE 802.3at  Power over Ethernet (PoE) that combines up to  30 Watts  power output and data per port over one Cat. 5E / 6 Ethernet cable. With totally  240 Watts  PoE budget on whole system, the IGS-10020HPT is designed specifically to satisfy the growing demand of higher power consuming network PD (powered devices) such as PTZ (Pan, Tilt & Zoom) /  Speed Dome network cameras , multi-channel (802.11a / b / g / n) wireless LAN access points and other PoE network devices by providing double PoE power than conventional 802.3af PoE currently. Intelligent Alive Check for Powered Device
The IGS-10020HPT PoE Switch can be configured to monitor connected PD’s status in real-time via ping action. Once the PD stops working and no response, the IGS-10020HPT will recycle the PoE port power and bring the PD back to work. It also greatly enhances the reliability owing that the PoE port will reset the PD power and thus reduce administrator’s management burden. PoE Schedule for Energy Saving
Under the trend of energy saving worldwide and contributing to environment protection on the earth, the IGS-10020HPT can effectively control the power supply besides its capability of giving high watts power. The built-in PoE schedule function helps you to enable or disable PoE power feeding for each PoE port during specified time intervals and it is a powerful function to help SMB or Enterprise save power and money. Digital Input and Digital Output for external Alarm
The IGS-10020HPT supports Digital Input, and Digital Output on its front panel. This external alarm enables users to use Digital Input to detect, log external device status (such as door intrusion detector ), and send event alarm to the administrators. The Digital Output could be used to alarm the administrators if the IGS-10020HPT port link down, link up or power failure. Robust Layer 2 Features
The IGS-10020HPT can be programmed for advanced switch management functions such as dynamic Port link aggregation, Q-in-Q VLAN, private VLAN, Rapid Spanning Tree protocol, Layer 2 to Layer 4 QoS, bandwidth control and IGMP Snooping. The IGS-10020HPT provides 802.1Q Tagged VLAN, and the VLAN groups allowed will be maximally up to 255. Via aggregation of supporting ports, the IGS-10020HPT allows the operation of a high-speed trunk combining multiple ports. It enables maximum up to 5 groups of 8 ports for trunking, and supports fail-over as well.

Efficient Management
For efficient management, the IGS-10020HPT Managed Ethernet Switch is equipped with console, WEB and SNMP management interfaces. With the built-in Web-based management interface, the IGS-10020HPT offers an easy-to-use, platform-independent management and configuration facility. For text-based management, the IGS-10020HPT can be accessed via Telnet and the console port. Moreover, it also offers secure remote management via any standard-based management software by supporting SNMPv3 connection which encrypts the packet content at each session.

Powerful Security
The IGS-10020HPT offers comprehensive Layer 2 to Layer 4 Access Control List (ACL) for enforcing security to the edge. It can be used to restrict network access by denying packets based on source and destination IP address, TCP/UDP ports or defined typical network applications. Its protection mechanism also comprises of 802.1x Port-Based and MAC-Based user and device authentication. With the private VLAN function, communication between edge ports can be prevented to ensure user privacy. The network administrators can now construct highly secured corporate networks with considerably less time and effort than before.

Flexibility and Extension Solution
The two mini-GBIC slots built in the IGS-10020HPT support Dual-Speed, 100Base-FX and 1000Base-SX/LX SFP (Small Form-factor Pluggable) fiber-optic modules, that means, the administrator now can flexibly choose the suitable SFP transceiver according to not only the transmission distance but also the transmission speed required. The distance can be extended from 550 meters (Multi-Mode fiber) up to above 10/50/70/120 kilometers (Single-Mode fiber or WDM fiber). They are well suited for applications within the enterprise data centers and distributions.

Perfect Integration Solution for Outdoor IP PoE Camera and NVR System
The IGS-10020HPT provides 8 10/100/1000Mbps 802.3at PoE ports and can offer sufficient PoE power for 8 PoE IP cameras at the same time. In addition, with the 2-Port 100/1000Base-X SFP interfaces, the IGS-10020HPT can connect to core fiber switch and send video stream to NVR and monitor center. Through the high performance switch architecture, the IGS-10020HPT facilitates the recorded video files from the 8 PoE IP Cameras to be saved in the NVR systems. Furthermore, the NVR systems can be controlled and monitored both in the local LAN and the remote site via Internet. The IGS-10020HPT undoubtedly brings an ideal secure surveillance system with lower total cost.
